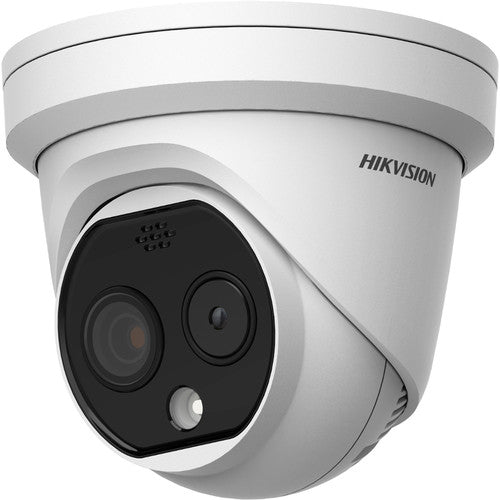

The DS-2TD1217B-3/PA Outdoor Thermal & Optical Network Turret Camera from Hikvision uses a vanadium oxide uncooled focal plane array to capture 160 x 120 resolution video that can be upscaled to 320 x 240 resolution. The camera's 3.1mm fixed thermal lens delivers a 50 x 37.2 field of view. Additionally, the camera is equipped with a 1/2.7" progressive scan CMOS sensor and a 4mm optical lens to capture 2688 x 1520 resolution video at 30 fps. IR illumination provides up to 49' of visibility in low-light conditions.
Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for outdoor use.
Thermal and optical camera equipped with a thermal sensor and a GPU to run video content analysis (VCA) algorithms
Delivers accurate temperature measurements in real time
Suitable for use in airports and areas that require stringent security measures
NETD <40 mK
4MP optical sensor
IR cut filter for day and night functionality (optical module)
IR illumination up 49' for low-light applications (optical module)
Adaptive automatic gain control (AGC), 3D-DNR, and Digital Detail Enhancement (DDE)
H.265, H.264, and MJPEG video codecs
5.48 MRAD instantaneous field of view
Up to 32 users with 3 host levels (admin, operator, and user)
Up to 20 channels in simultaneous live view
Audio input and output
Alarm input and output
Reset button
CE, FCC, and cUL certified
TVS 6000V lightning, surge, and transient voltage protection
